Cee Flanged Sockets
CEE-flanged sockets sloping 16/32A
72 products
Representative models
CEE-flanged sockets sloping 16/32AThis series has 72 models; showing 20 representative models. Search any other article number, or just ask us.
| Article no. | Name | Voltage | Rated current | Poles | Clock hour | Protection | Connection system | Material | |
|---|---|---|---|---|---|---|---|---|---|
|

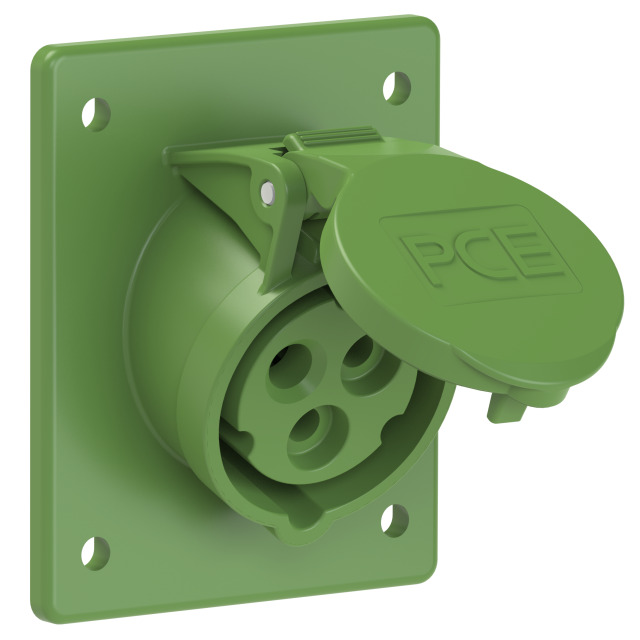

413-10f8 | CEE-flanged socket sloping (80x97mm) 16A 3p 10h IP44/IP54 | 50-500 V (100-300 Hz) green | 16 | 3 | 10 | IP44 | Screwed terminal | Plastic |
|
|
413-4f8 | CEE-flanged socket sloping (80x97mm) 16A 3p 4h IP44/IP54 | 110 V (50+60 Hz) yellow | 16 | 3 | 4 | IP44 | Screwed terminal | Plastic |
|

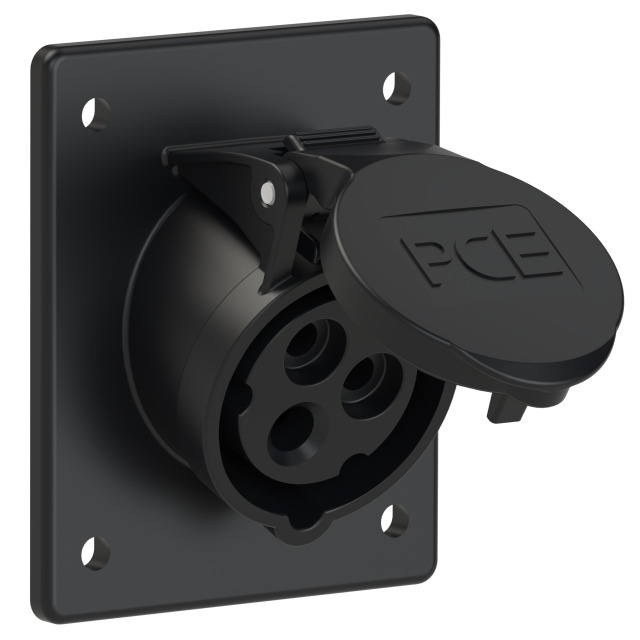

413-7f8 | CEE-flanged socket sloping (80x97mm) 16A 3p 7h IP44/IP54 | 500 V (50+60 Hz) black | 16 | 3 | 7 | IP44 | Screwed terminal | Plastic |
|

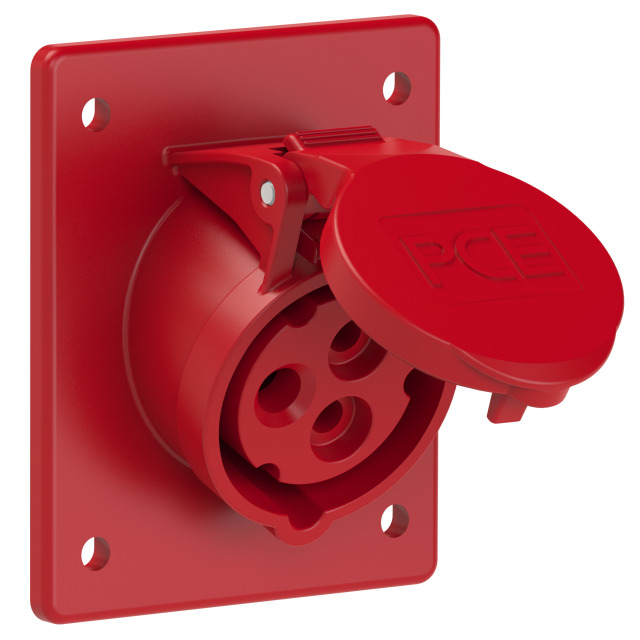

413-9f8 | CEE-flanged socket sloping (80x97mm) 16A 3p 9h IP44/IP54 | 400 V (50+60 Hz) red | 16 | 3 | 9 | IP44 | Screwed terminal | Plastic |
|

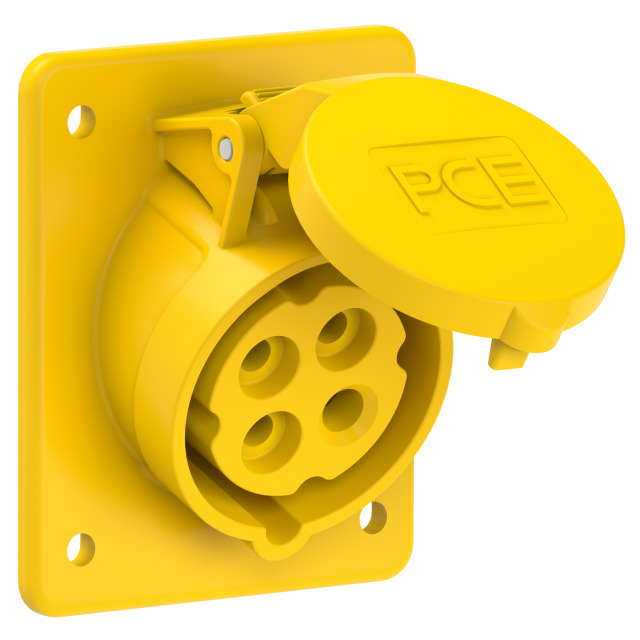

414-4f8 | CEE-flanged socket sloping (80x97mm) 16A 4p 4h IP44 | 110 V (50+60 Hz) yellow | 16 | 4 | 4 | IP44 | Screwed terminal | Plastic |
|

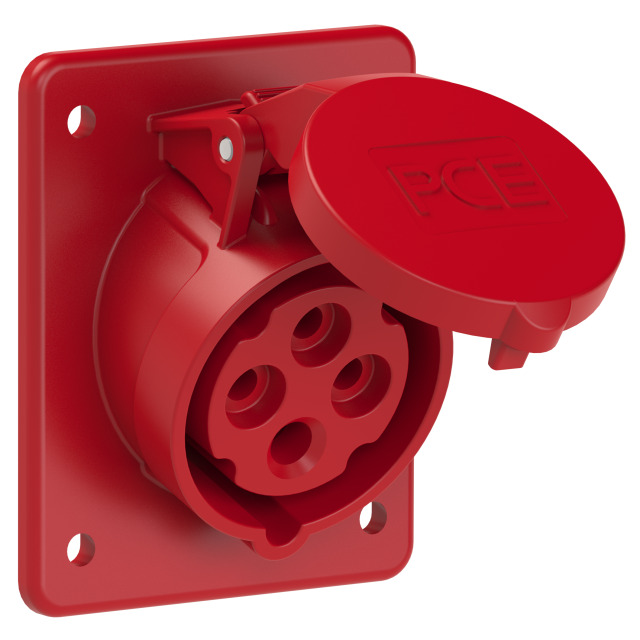

414-6f8 | CEE-flanged socket sloping (80x97mm) 16A 4p 6h IP44 | 400 V (50+60 Hz) red | 16 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|

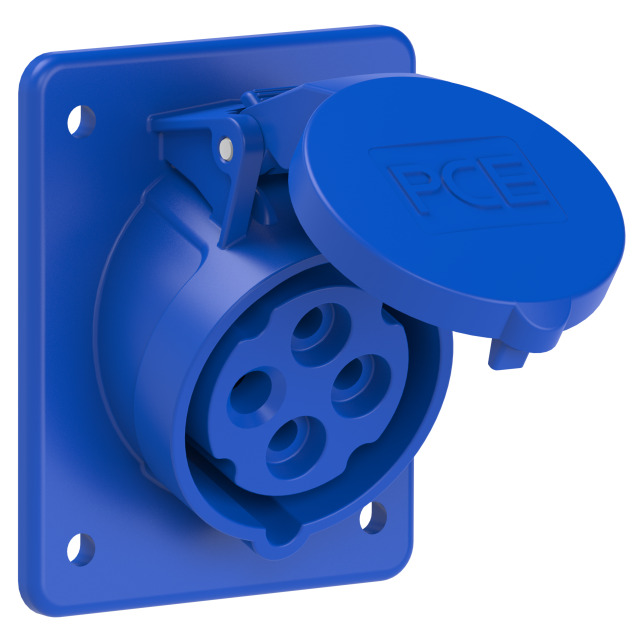

414-9f8 | CEE-flanged socket sloping (80x97mm) 16A 4p 9h IP44 | 230 V (50+60 Hz) blue | 16 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|

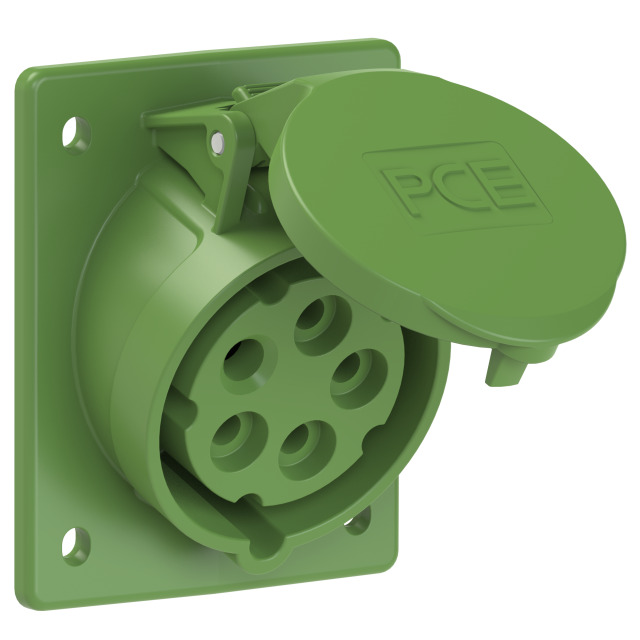

415-10 | CEE-flanged socket sloping (80x97mm) 16A 5p 10h IP44/IP54 | 50-500 V (100-300 Hz) green | 16 | 5 | 10 | IP44 | Screwed terminal | Plastic |
|

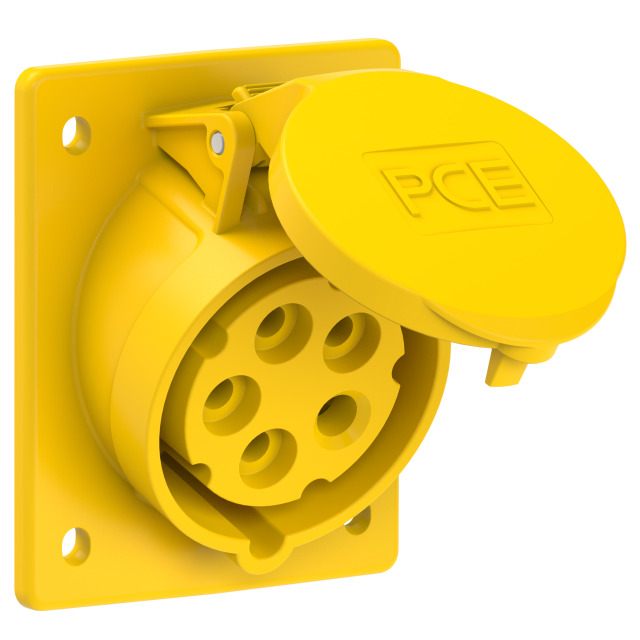

415-4 | CEE-flanged socket sloping (80x97mm) 16A 5p 4h IP44/IP54 | 110 V (50+60 Hz) yellow | 16 | 5 | 4 | IP44 | Screwed terminal | Plastic |
|

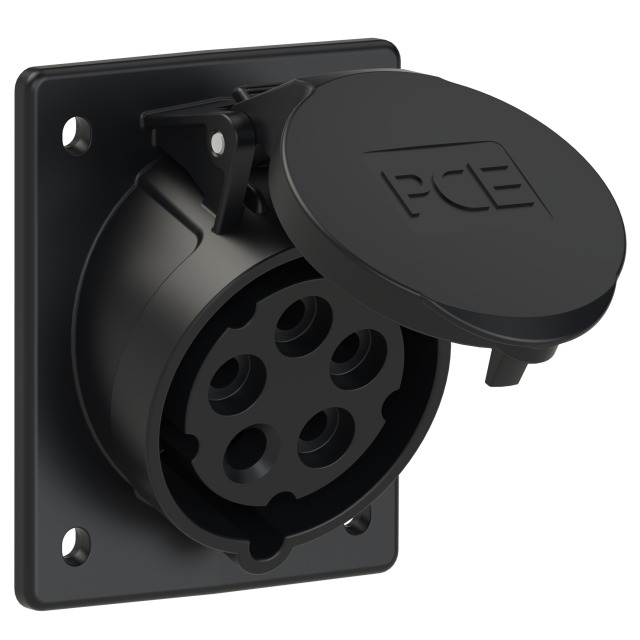

415-7 | CEE-flanged socket sloping (80x97mm) 16A 5p 7h IP44/IP54 | 500 V (50+60 Hz) black | 16 | 5 | 7 | IP44 | Screwed terminal | Plastic |
|

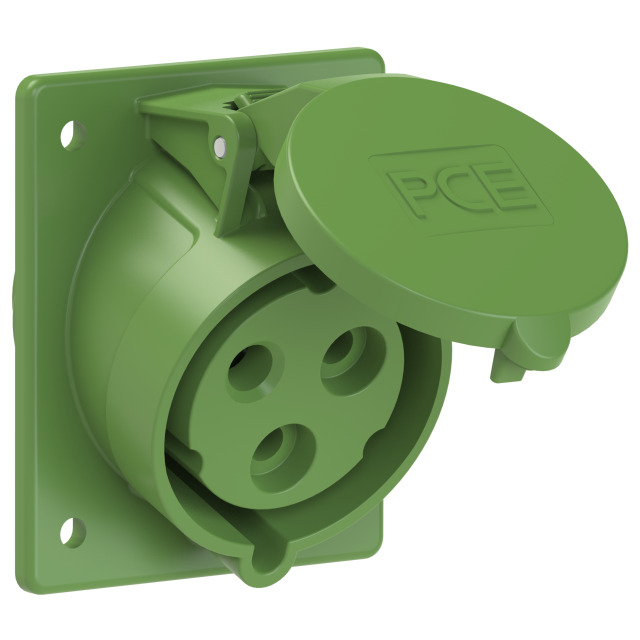

423-10 | CEE-flanged socket sloping (80x97mm) 32A 3p 10h IP44 | 50-500 V (100-300 Hz) green | 32 | 3 | 10 | IP44 | Screwed terminal | Plastic |
|

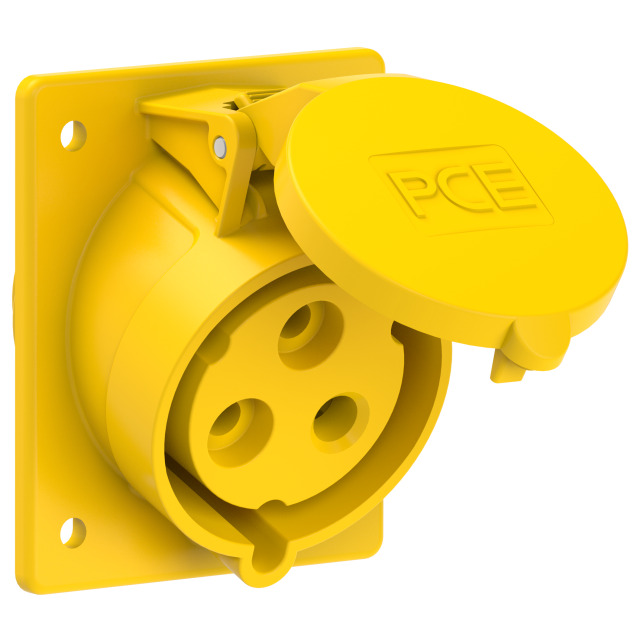

423-4 | CEE-flanged socket sloping (80x97mm) 32A 3p 4h IP44 | 110 V (50+60 Hz) yellow | 32 | 3 | 4 | IP44 | Screwed terminal | Plastic |
|

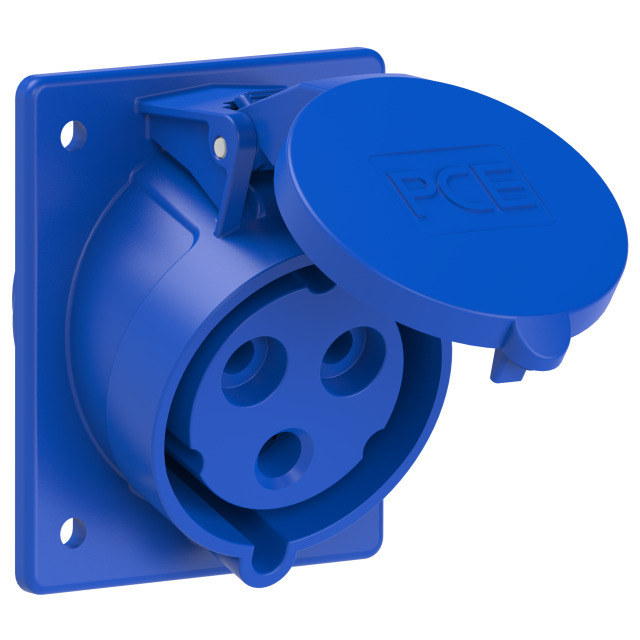

423-6 | CEE-flanged socket sloping (80x97mm) 32A 3p 6h IP44 | 230 V (50+60 Hz) blue | 32 | 3 | 6 | IP44 | Screwed terminal | Plastic |
|

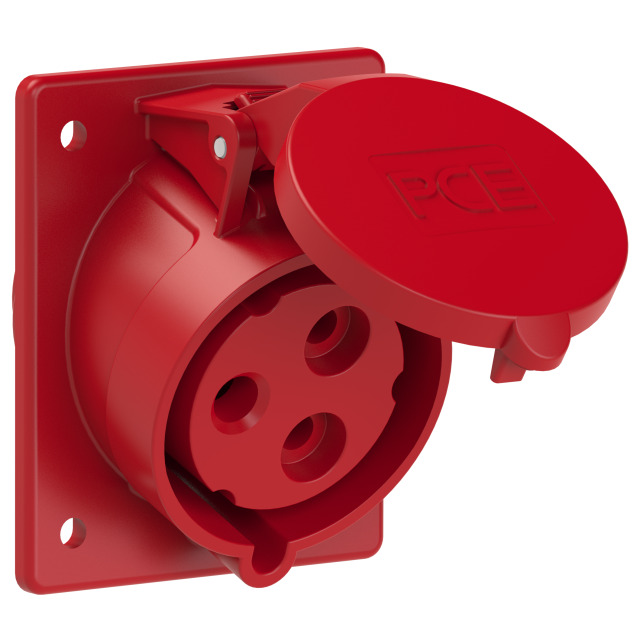

423-9 | CEE-flanged socket sloping (80x97mm) 32A 3p 9h IP44 | 400 V (50+60 Hz) red | 32 | 3 | 9 | IP44 | Screwed terminal | Plastic |
|
424-10 | CEE-flanged socket sloping (80x97mm) 32A 4p 10h IP44 | 50-500 V (100-300 Hz) green | 32 | 4 | 10 | IP44 | Screwed terminal | Plastic |
|

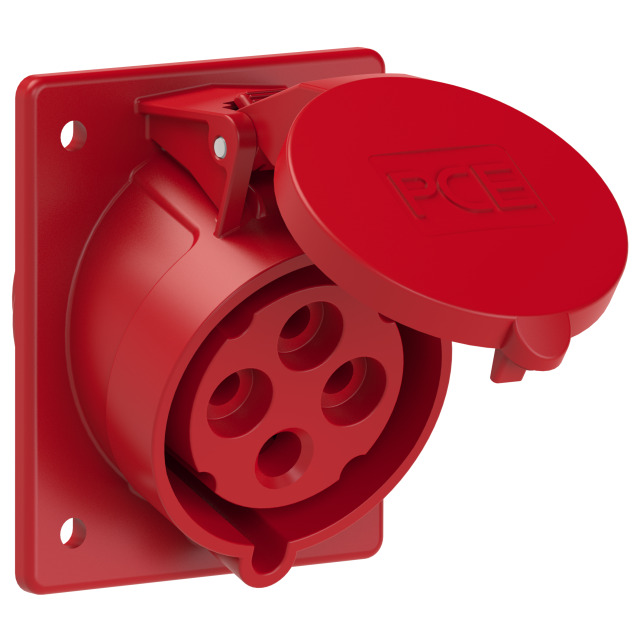

424-6 | CEE-flanged socket sloping (80x97mm) 32A 4p 6h IP44 | 400 V (50+60 Hz) red | 32 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|

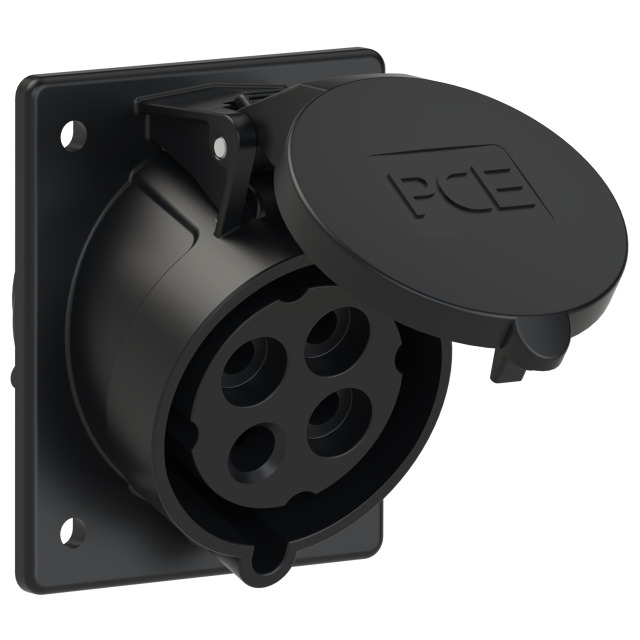

424-7 | CEE-flanged socket sloping (80x97mm) 32A 4p 7h IP44 | 500 V (50+60 Hz) black | 32 | 4 | 7 | IP44 | Screwed terminal | Plastic |
|

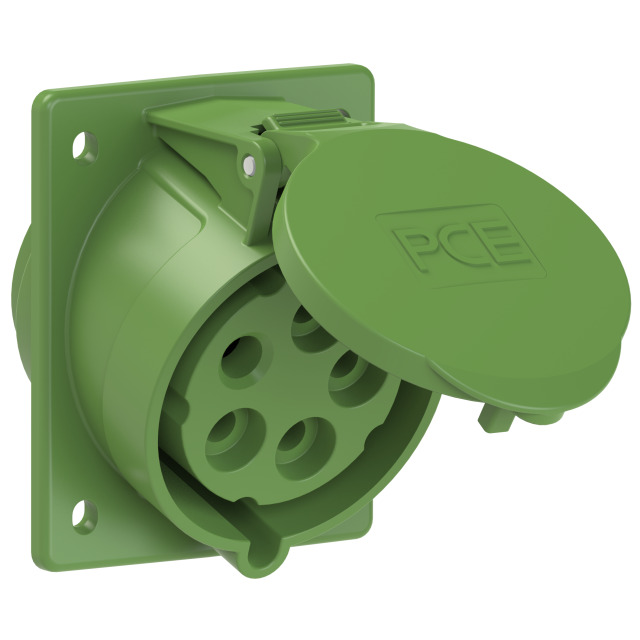

425-10 | CEE-flanged socket sloping (80x97mm) 32A 5p 10h IP44/IP54 | 50-500 V (100-300 Hz) green | 32 | 5 | 10 | IP44 | Screwed terminal | Plastic |
|

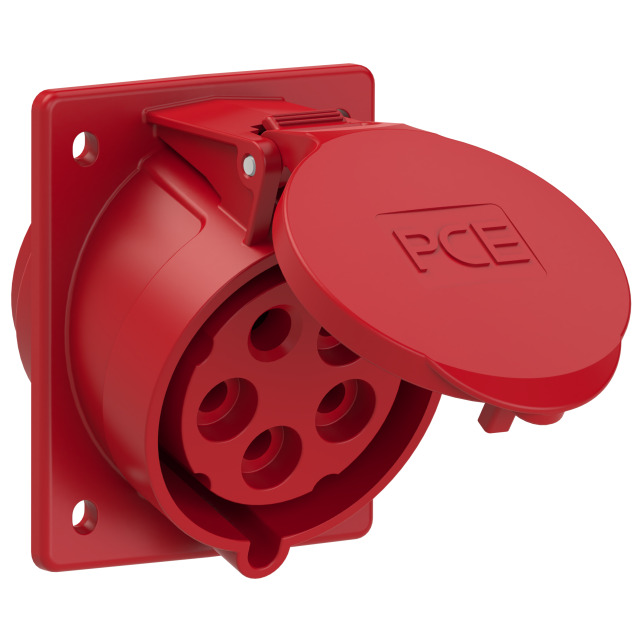

425-11 | CEE-flanged socket sloping (80x97mm) 32A 5p 11h IP44/IP54 | Other | 32 | 5 | 11 | IP44 | Screwed terminal | Plastic |
|

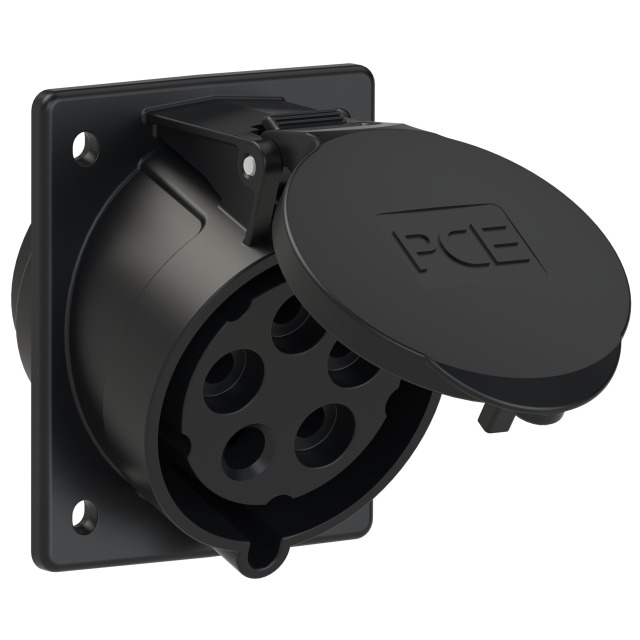

425-7 | CEE-flanged socket sloping (80x97mm) 32A 5p 7h IP44/IP54 | 500 V (50+60 Hz) black | 32 | 5 | 7 | IP44 | Screwed terminal | Plastic |
