CEE 联锁开关插座
CEE 联锁开关插座 DIN 导轨安装
95 个型号
代表型号
CEE 联锁开关插座 DIN 导轨安装本系列共 95 个型号，此处列出 20 个代表型号。 其余型号按货号可搜，或直接询价。
| 货号 | 名称 | 额定电压 | 额定电流 | 极数 | 钟点位置 | 防护等级 | 接线方式 | 材料 | |
|---|---|---|---|---|---|---|---|---|---|
|

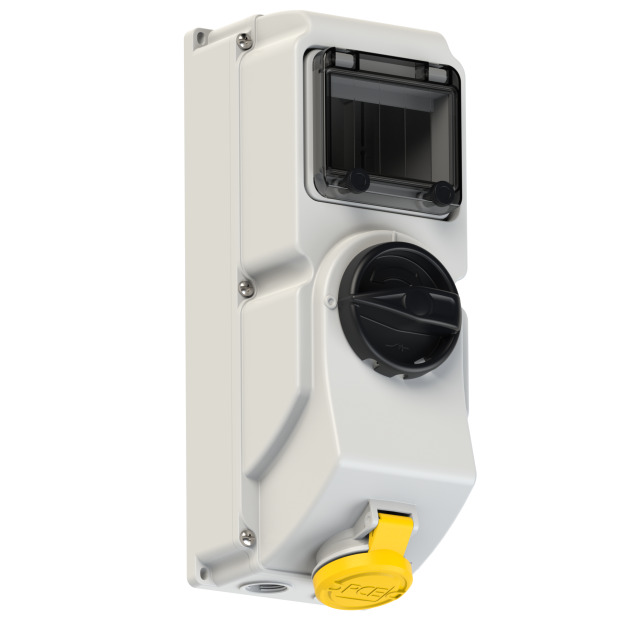

7613-4 | CEE-switched interlocked socket DIN 16A 3p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 16 | 3 | 4 | IP54 | – | – |
|

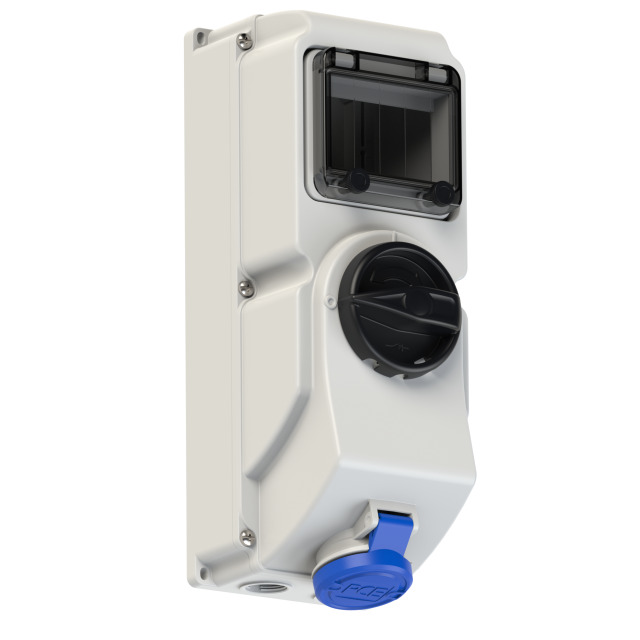

7613-6 | CEE-switched interlocked socket DIN 16A 3p 6h IP44/IP54 | 230 V（50+60 Hz）蓝 | 16 | 3 | 6 | IP54 | – | – |
|
7614-4 | CEE-switched interlocked socket DIN 16A 4p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 16 | 4 | 4 | IP54 | – | – |
|
7614-7 | CEE-switched interlocked socket DIN 16A 4p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 16 | 4 | 7 | IP54 | – | – |
|

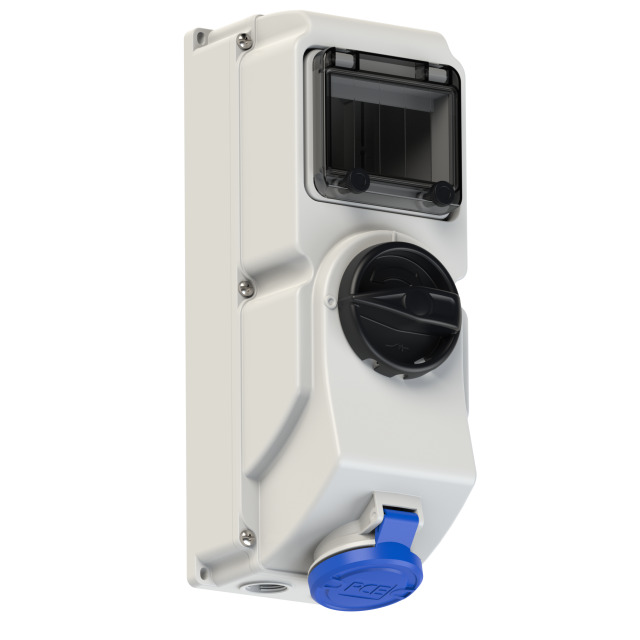

7614-9 | CEE-switched interlocked socket DIN 16A 4p 9h IP44/IP54 | 200–250 V（50+60 Hz）蓝 | 16 | 4 | 9 | IP54 | – | – |
|

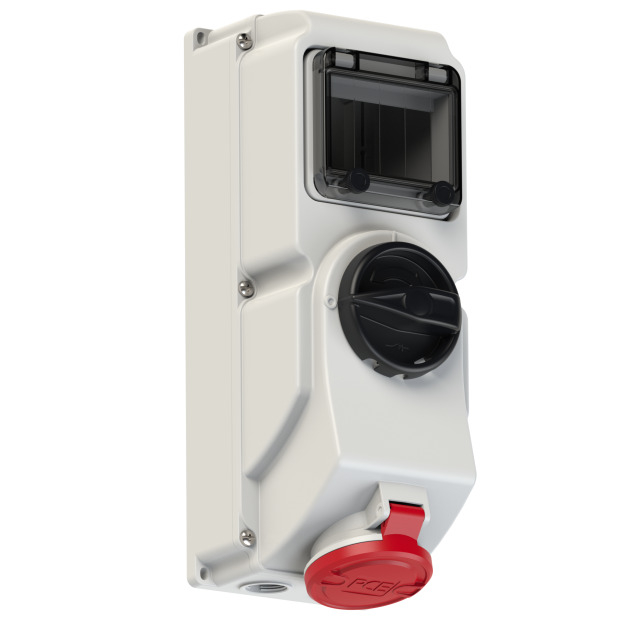

7615-6 | CEE-switched interlocked socket DIN 16A 5p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 16 | 5 | 6 | IP54 | – | – |
|
7615-9 | CEE-switched interlocked socket DIN 16A 5p 9h IP44/IP54 | 200–250 V（50+60 Hz）蓝 | 16 | 5 | 9 | IP54 | – | – |
|

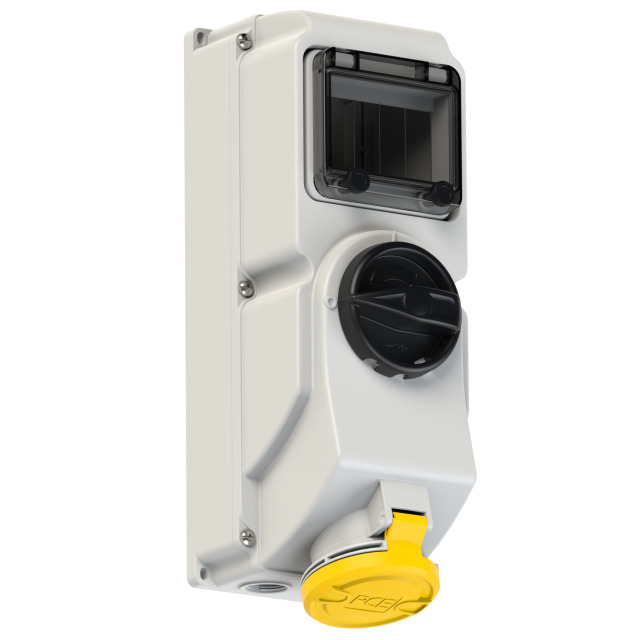

7623-4 | CEE-switched interlocked socket DIN 32A 3p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 32 | 3 | 4 | IP54 | – | – |
|
7623-9 | CEE-switched interlocked socket DIN 32A 3p 9h IP44/IP54 | 380–415 V（50+60 Hz）红 | 32 | 3 | 9 | IP54 | – | – |
|
|
7624-6 | CEE-switched interlocked socket DIN 32A 4p 6h IP44/IP54 | 400 V（50+60 Hz）红 | 32 | 4 | 6 | IP54 | – | – |
|

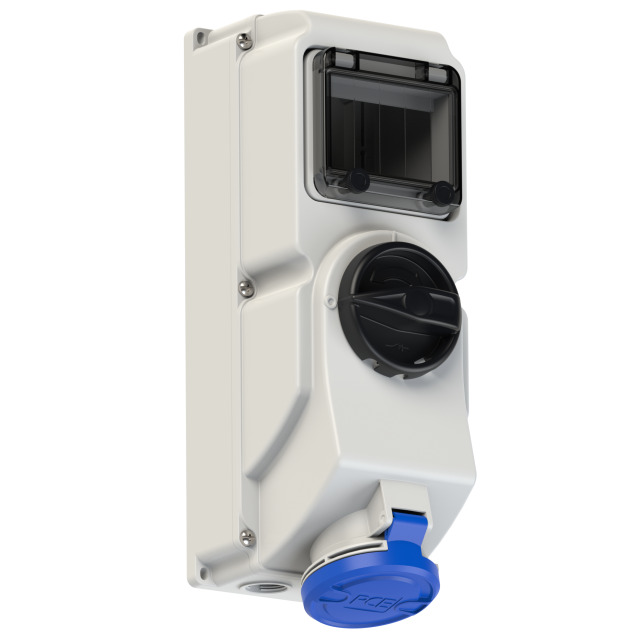

7624-9 | CEE-switched interlocked socket DIN 32A 4p 9h IP44/IP54 | 200–250 V（50+60 Hz）蓝 | 32 | 4 | 9 | IP54 | – | – |
|
7625-4 | CEE-switched interlocked socket DIN 32A 5p 4h IP44/IP54 | 110 V（50+60 Hz）黄 | 32 | 5 | 4 | IP54 | – | – |
|

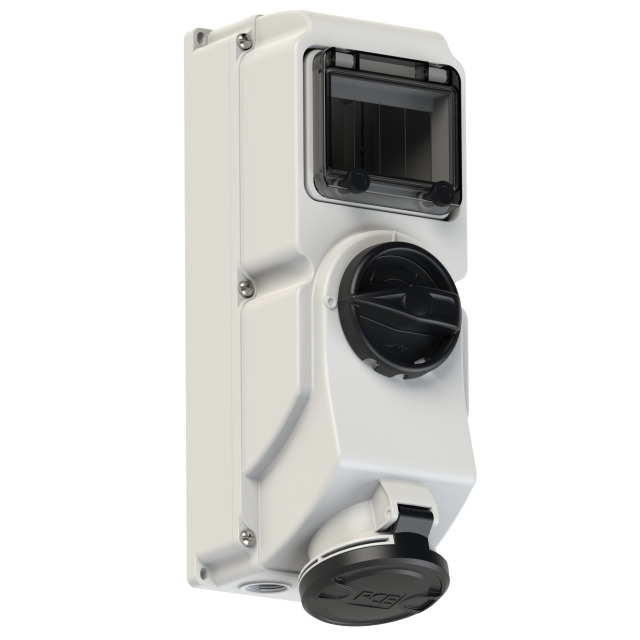

7625-7 | CEE-switched interlocked socket DIN 32A 5p 7h IP44/IP54 | 500 V（50+60 Hz）黑 | 32 | 5 | 7 | IP54 | – | – |
|

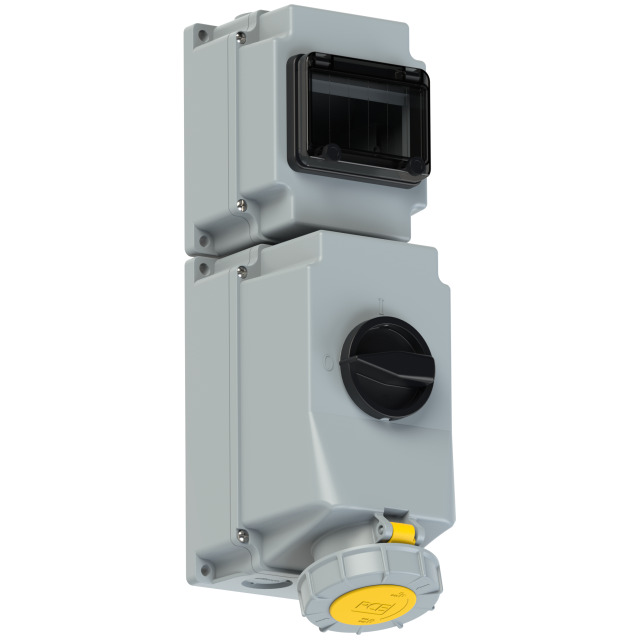

76332-4 | CEE-switched interlocked socket DIN 63A 3p 4h IP66/IP67 | 110 V（50+60 Hz）黄 | 63 | 3 | 4 | IP67 | – | – |
|

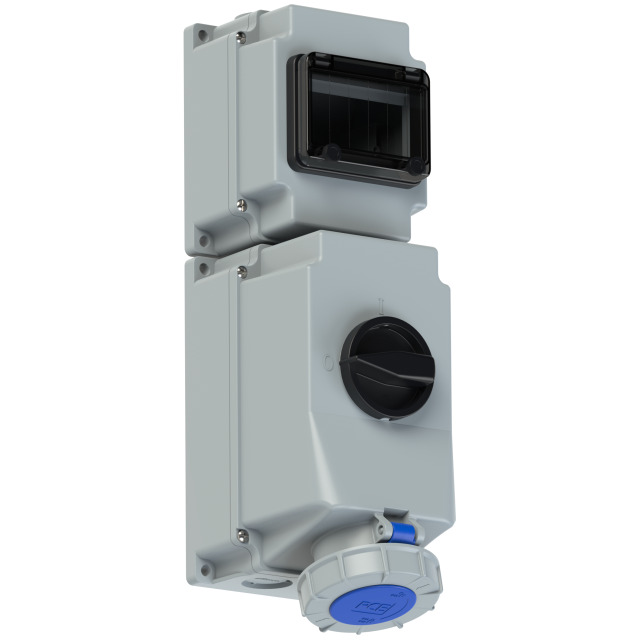

76332-6 | CEE-switched interlocked socket DIN 63A 3p 6h IP66/IP67 | 230 V（50+60 Hz）蓝 | 63 | 3 | 6 | IP67 | – | – |
|
76332-9 | CEE-switched interlocked socket DIN 63A 3p 9h IP66/IP67 | 380–415 V（50+60 Hz）红 | 63 | 3 | 9 | IP67 | – | – |
|
|
76342-6 | CEE-switched interlocked socket DIN 63A 4p 6h IP66/IP67 | 400 V（50+60 Hz）红 | 63 | 4 | 6 | IP67 | – | – |
|

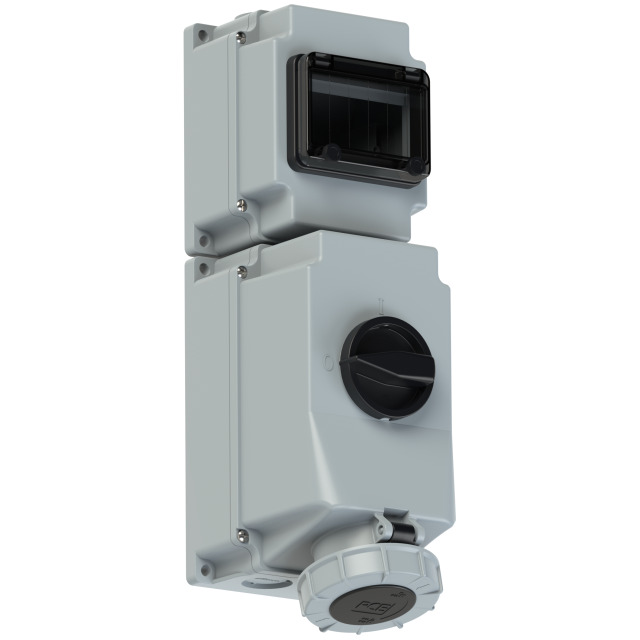

76342-7 | CEE-switched interlocked socket DIN 63A 4p 7h IP66/IP67 | 500 V（50+60 Hz）黑 | 63 | 4 | 7 | IP67 | – | – |
|
|
76352-4 | CEE-switched interlocked socket DIN 63A 5p 4h IP66/IP67 | 110 V（50+60 Hz）黄 | 63 | 5 | 4 | IP67 | – | – |
|
|
76352-7 | CEE-switched interlocked socket DIN 63A 5p 7h IP66/IP67 | 500 V（50+60 Hz）黑 | 63 | 5 | 7 | IP67 | – | – |
